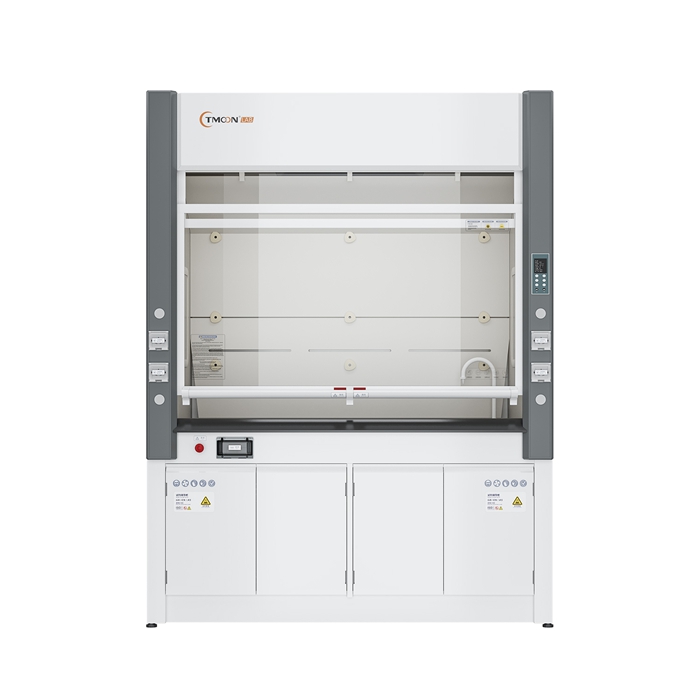

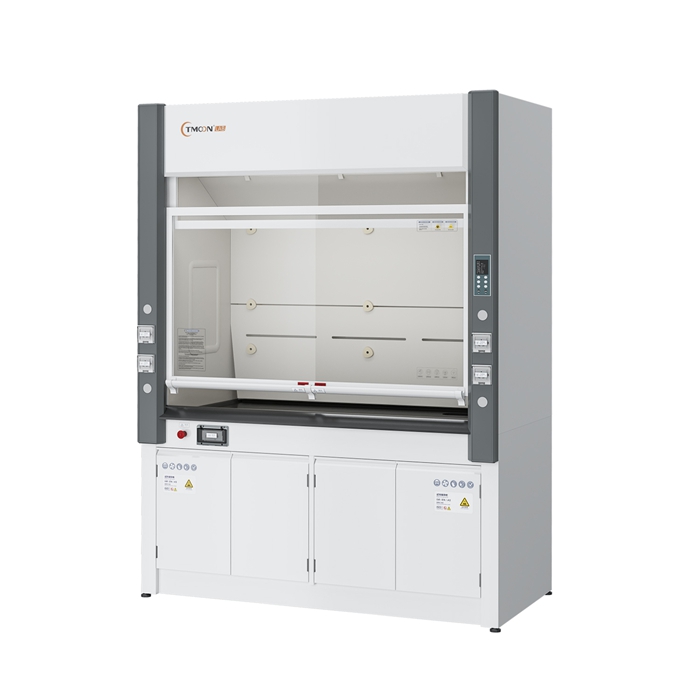

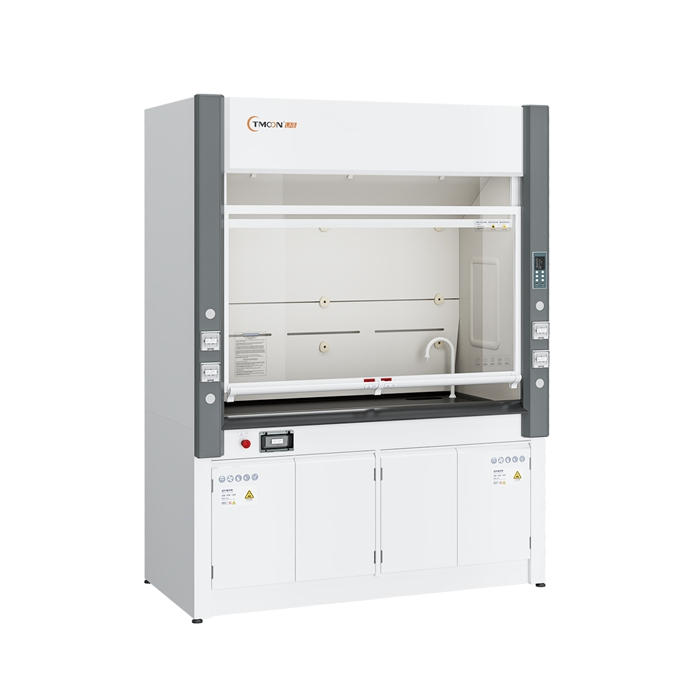

A fume hood is a professional-grade laboratory ventilation system designed to protect personnel and maintain clean research environments.
Manufactured with 1.0mm cold-rolled steel and coated with 75μm epoxy resin powder, our chemical fume hoods deliver exceptional corrosion resistance and durability.
Featuring patented side air supply technology and an intelligent air volume control system, this lab exhaust hood ensures stable face velocity within safe parameters while maximizing energy efficiency.
Equipped with 5mm tempered glass sash, anti-fall mechanical mechanisms, and modular corrosion-resistant linings (phenolic resin, ceramic, PP), our fume cupboards meet both European and American safety standards, making them ideal for chemical laboratories, pharmaceutical research, educational institutions, and industrial R&D facilities.
| Model NO. | 5 Series Desktop Fume Hood |
| Feature | Corrosion Resistance, Heat Resistant, Acid & Alkali Resistant, Fireproof, Explosion Proof |
| Hood Type | Standard |
| Color | White |
| OEM & ODM Custom | Accept |
| Sash | 5mm Tempered Glass |
| Worktop Material | Ceramic/Physical and Chemical Board |
| Socket | 4*10A/Waterproof British Standard |
| Standard Configurtation | Gas/Water Accessorise/MCB/E-Stop/Controller |
| Transport Package | International Standards |
| Specification | Standard Specifications or Customized |
| Origin | Guangdong, China |
| HS Code | 8414809090 |
MODEL | 5 SERIES DESKTOP FUME HOOD |
Length(mm) | 1200 | 1500 | 1800 |
Depth(mm) | 850 | 850 | 850 |
Height(mm) | 2350 | 2350 | 2350 |
Net Width Of Intemal Workspace(mm) | 950 | 1250 | 1550 |
Net Depth Of Internal Workspace(mm) | 650 | 650 | 650 |
Net Height Of Internal Workspace(mm) | 900/1165 | 900/1165 | 900/1165 |
Worktop Size(mm) | 948*772 | 1248*772 | 1548*772 |
Lighting(LUX) | ≥1000 | ≥1000 | ≥1000 |
Socket | 4*10A | 4*10A | 4*10A |
Face Velocity(ms) | 0.5m/s | 0.5m/s | 0.5m/s |
ExhaustVolume(M²/H) | 860 | 1130 | 1400 |
Viewing Window Opening Height(mm) | 750 | 750 | 750 |
